Lcd Screen Manufacturer For Intelligent Electric Vehicle Charging Pile Interfaces

Featured EV Charging Interface Displays

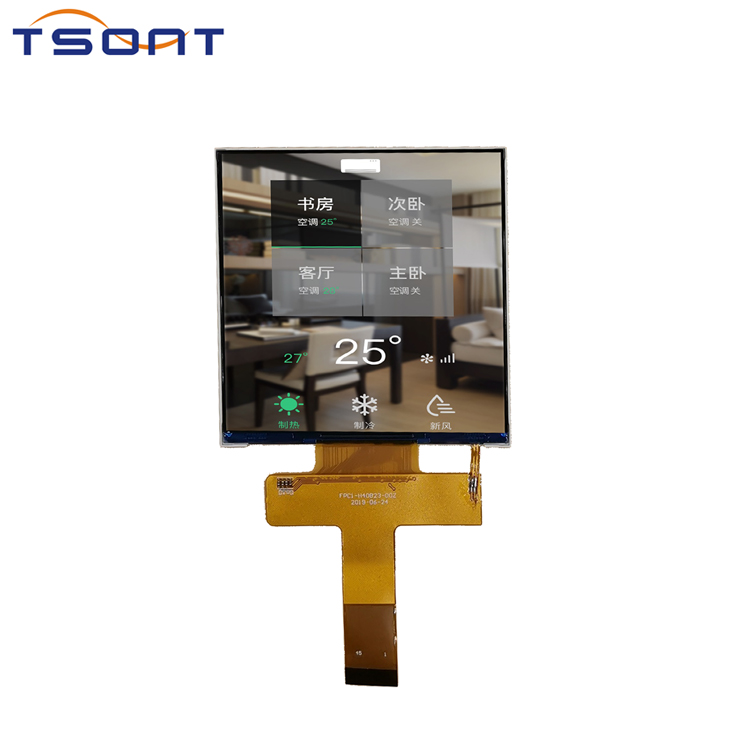

Small sized screen,H40B23-00Z for AC Chargers

H40B23-00Z Compact EV Interface Screen

View Details

H101Q01-01W 10.1 inch touch module with driver board HDMI USB 12V 1280*800 for Fast Chargers

H101Q01-01W 10.1" Touch Module with Driver Board

View Details

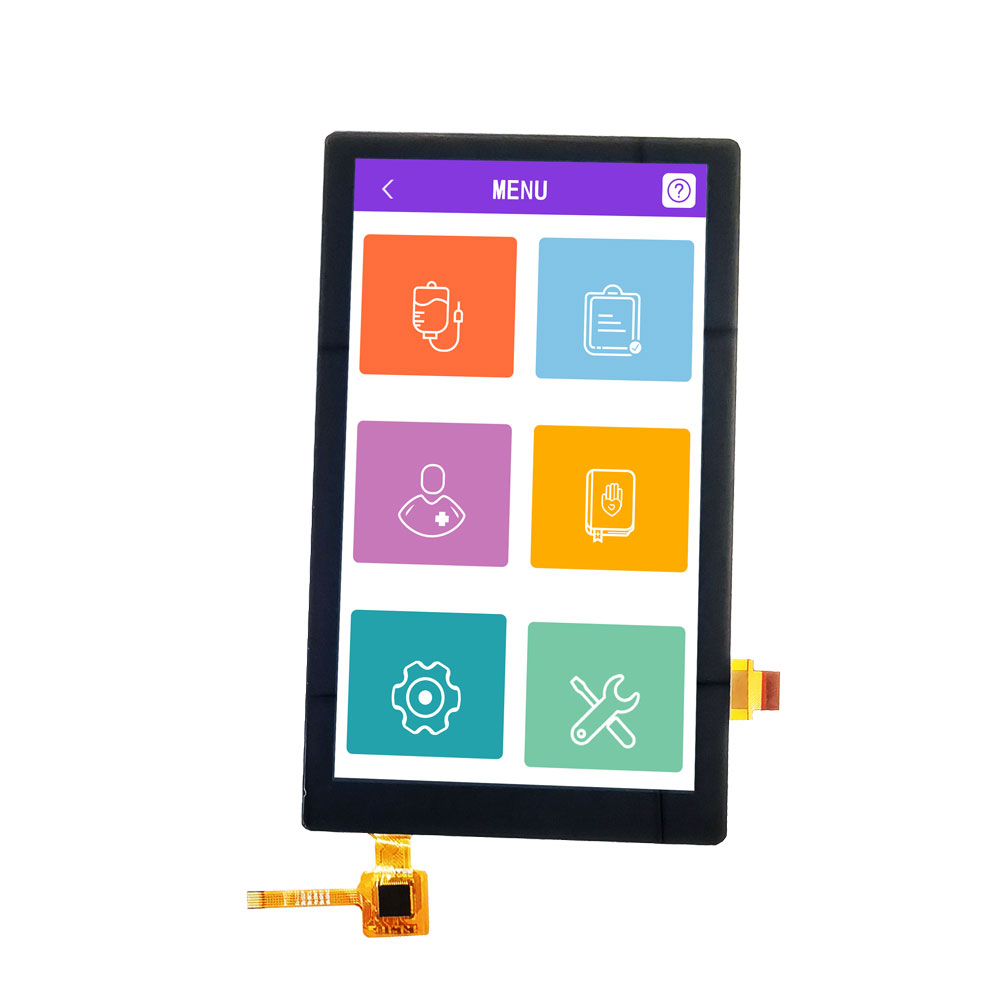

H55G05-00W 5.5 inch interface 720*1280 MIPI interface with touch for Smart Charging Stations

H55G05-00W 5.5" MIPI Interface Touch Screen

View Details

Medium sized screen,10.1 inch for Commercial Charging Terminals

10.1" Medium Sized EV Charging Terminal Screen

View Details

The Revolution of Intelligent EV Charging Pile Interfaces

The global transition to sustainable mobility has accelerated the deployment of Electric Vehicles (EVs). To support this monumental shift, the infrastructure of intelligent EV charging piles (also known as Electric Vehicle Supply Equipment, or EVSE) must evolve rapidly. At the heart of this evolution is the Human-Machine Interface (HMI). As a leading LCD screen manufacturer, we recognize that the display screen is no longer just a passive output device. It is a critical gateway for user interaction, transaction security, system status monitoring, and brand communication.

Modern electric vehicle charging piles are transitioning from basic, numeric LED indicators to full-color, interactive, and intelligent TFT LCD touch screens. These smart interfaces allow users to view real-time charging diagnostics, configure charging modes, process secure RFID or mobile payments, and interact with dynamic advertising content. The integration of high-resolution displays has transformed charging stations into multifunctional IoT hubs that blend energy replenishment with digital media.

i Why Industrial-Grade LCD Screens are Essential for EVSE

Unlike standard consumer electronics, EV charging stations are continuously exposed to harsh outdoor environments. They must withstand blistering heat, freezing winters, direct sunlight, rain, dust, and potential vandalism. Consequently, standard commercial-grade displays fail rapidly. LCD screen manufacturers must engineer specialized, ruggedized display modules designed to perform under extreme stresses while delivering clear visibility 24/7.

Key Engineering Challenges & LCD Solutions

Developing LCD screens for outdoor intelligent charging piles requires a deep understanding of optical physics, materials science, and electrical engineering. Here are the core challenges we solve as a professional LCD screen manufacturer:

Sunlight Readability & High Brightness: Standard displays wash out completely under direct sunlight. We utilize advanced high-efficiency LED backlights to achieve brightness levels from 1000 nits to over 1500 nits. Combined with Anti-Glare (AG) and Anti-Reflective (AR) optical surface treatments, our screens remain perfectly legible even in midday sun.
Extreme Temperature Resilience: Outdoor temperatures can range from -30°C in winter to over 50°C in summer. The internal temperature of a closed charging enclosure can rise even higher. Our TFT LCD modules are engineered with wide-temperature liquid crystal materials, allowing them to operate flawlessly from -30°C to +80°C without screen blackouts or response lag.
Robust Touch Interactivity (PCAP): Charging piles require touch control for payment and menu navigation. We integrate Projected Capacitive (PCAP) touch sensors that support multi-touch, glove operation, and remain fully functional when exposed to rain, snow, or condensation on the screen surface.
Vandalism and Impact Protection: Public terminals are prone to physical impact. We employ chemically strengthened cover glass with up to IK08 or IK10 impact ratings, protecting the underlying LCD cell from breakage.

TSONT LCD manufacturing process and quality control

Advanced Application Scenarios of Smart EV Charging Displays

The application of TFT LCD screens within the EV infrastructure varies significantly depending on the installation site and charger type. As an experienced LCD screen manufacturer, we customize our display modules to cater to these distinct environments:

1. Residential and Fleet AC Chargers (4.3" to 7.0" Screens)

For home charging systems or private corporate fleets, compact and cost-effective displays are ideal. Screen sizes ranging from 4.3 inches to 7.0 inches provide the perfect balance. These interfaces display basic information such as current state of charge (SoC), charging speed, elapsed time, and energy consumed. Touch capabilities allow users to schedule charging sessions during off-peak electricity hours, maximizing cost savings.

2. Commercial DC Fast Chargers & Highway Hubs (10.1" to 15.6" Screens)

High-power DC fast-charging stations located along highways or commercial parking lots require larger, highly interactive interfaces. Typically using 10.1-inch to 15.6-inch displays, these stations present complex data, including battery health diagnostics, estimated completion times, and billing summaries. Furthermore, because users remain near the vehicle during fast charging (typically 20-40 minutes), these larger screens serve as prime digital signage platforms for localized advertising and promotions, generating secondary revenue streams for charging network operators.

3. Integrated Smart Grid & V2G Interfaces

As Vehicle-to-Grid (V2G) technology matures, EV charging piles will not only supply power but also draw power back from vehicles to stabilize the grid. The HMI on these advanced stations requires highly dynamic visualization tools. Multi-touch LCD screens allow users to control energy flow directions, set minimum discharge limits, and view real-time grid compensation rates. This level of interaction requires fast refreshing, high-definition displays with robust mainboards capable of handling complex graphic user interfaces (GUIs).

About Shenzhen TSONT ELEC Co., Ltd.

Shenzhen TSONT ELEC Co., Ltd. Factory Building and Office

Our Team & Expertise

Shenzhen TSONT ELEC.Co., Ltd. was established in Shenzhen, a leading science and technology city in China. We are a technology company specializing in the R&D, design, production, and sales of small and medium TFT LCD modules. Our product sizes primarily involve 4.3 inches, 7.0 inches, and 10.1 inches, providing complete solution providers for the building intercom industry, smart home systems, and industrial HMI applications like intelligent EV charging piles.

Since our establishment, the company has developed steadily at home and abroad. Many well-known manufacturers have established long-term and stable cooperation relationships, and we have received strong support from many domestic and foreign LCD glass and IC manufacturers. Our products are widely used in handheld devices, smart devices, smart homes, Internet of Things (IoT), medical devices, baby monitors, building intercoms, security access control, financial POS terminals, industrial equipment, and other areas of human-computer interaction.

Our Quality Assurance & Process

The company has a group of professional display module R&D, production management, and technical personnel. We implement a sound ISO9001 quality management system, making full use of local policies, geography, and talent advantages. We strive to learn and absorb international advanced technology and experience, upholding high standards, precision technology, and a high-quality business philosophy. We actively explore scientific and efficient management mechanisms to create an innovative technology and management team. By providing customers with quality services, our products have won unanimous recognition from customers. We uphold the business philosophy of honesty and win-win, remaining forge ahead and down-to-earth to provide customers with better products and services.
