Cnc Display For Portable Electronic Test And Measurement Tools

Featured CNC Display Modules

High-performance display panels engineered specifically for portable testing, analysis, and calibration instruments.

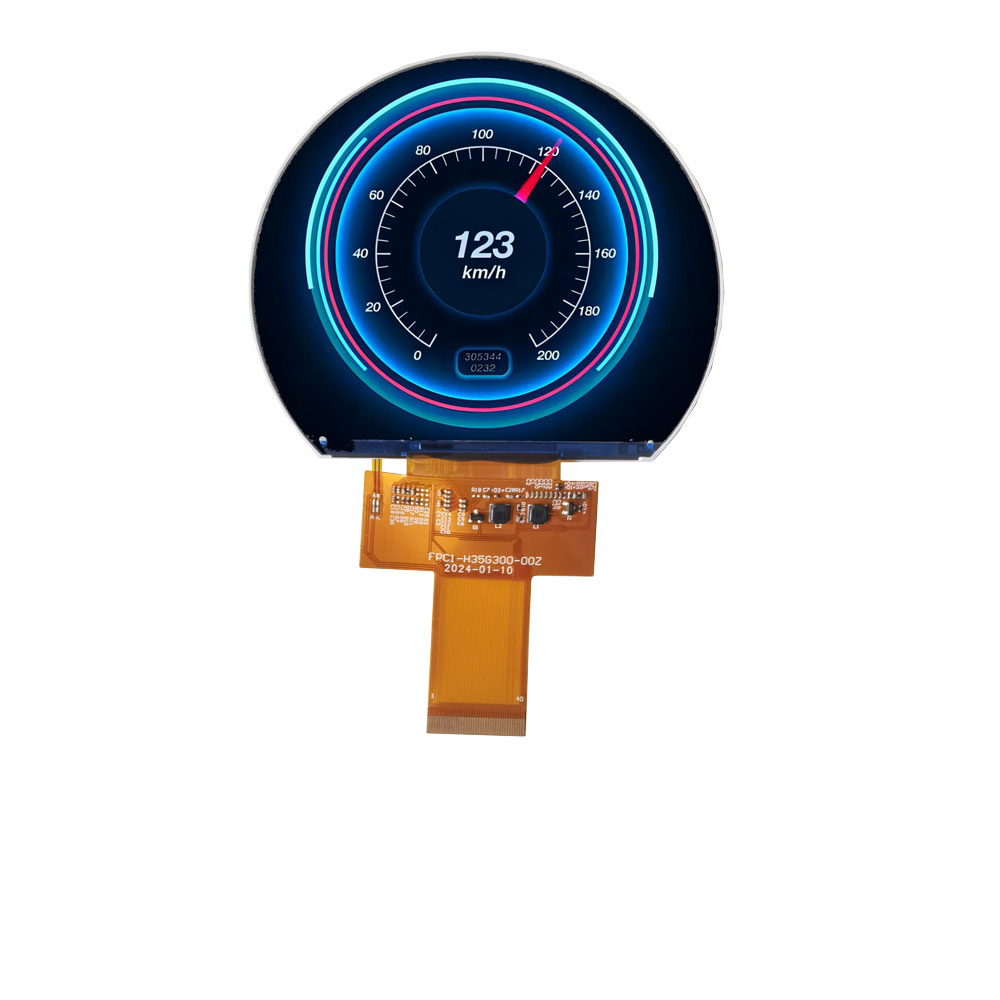

3.5"/3.6" CNC Display for Precision Handheld Calibrators Learn More

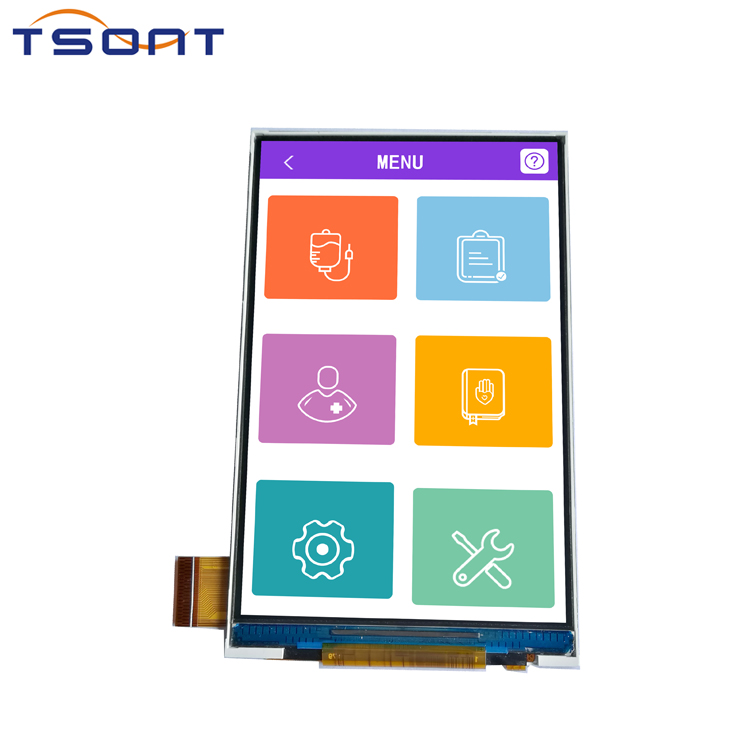

H40B18-00Z CNC Display for Compact Oscilloscopes Learn More

5.5 inch 1080*1920 MIPI interface with touch able

5.5" MIPI CNC Touch Display for Field Signal Analyzers Learn More

H31G01-00Z CNC Display for Portable Multimeters Learn More

Industrial & Commercial Landscape of CNC Displays

The industrial landscape for portable electronic test and measurement tools is undergoing a rapid digital transformation. Traditional analog meters and low-resolution segment LCDs have been permanently replaced by high-performance CNC display modules. These advanced displays act as the primary human-machine interface (HMI) for engineers, technicians, and field operators who require real-time, high-fidelity data visualization in critical environments.

Commercially, the demand for portable testing devices—such as handheld oscilloscopes, spectrum analyzers, optical time-domain reflectometers (OTDRs), and multi-function calibrators—is surging. This growth is driven by the expansion of 5G telecommunications, renewable energy installations, automotive electronics diagnostic systems, and smart factory automation. As these instruments become more sophisticated, the CNC display must offer not only crystal-clear resolution but also extreme durability to survive harsh industrial settings, including drops, electromagnetic interference (EMI), and variable outdoor lighting conditions.

Key Commercial Driver: The Need for Field-Ready Performance

Modern testing tools are no longer confined to clean laboratory benches. They are deployed on high-voltage transmission towers, marine vessels, automotive assembly lines, and underground mining sites. A failure in the display module means a failure of the entire tool, leading to expensive downtime. Consequently, instrument manufacturers are prioritizing high-reliability TFT LCD displays with integrated touch capabilities and robust protective bezels.

Technological Development Trends

To stay competitive in the global test and measurement market, displays are evolving across several key technological vectors:

1. High Resolution and High Pixel Density (PPI)

As electronic signals become more complex, displays must accurately render micro-waveforms, detailed histograms, and multi-channel charts. The integration of high-definition interfaces like MIPI (Mobile Industry Processor Interface) allows compact screens, such as 5.5-inch panels, to support resolutions up to 1080*1920 pixels, ensuring that even the smallest signal anomaly is visible to the technician.

2. Advanced Optical Bonding and Outdoor Readability

Field technicians frequently work under direct sunlight, which can cause severe glare on standard screens. Modern CNC displays utilize optical bonding technology (filling the air gap between the LCD panel and the cover glass with index-matching adhesive). This minimizes internal reflections, dramatically improves contrast, and allows the screen to remain legible even at lower backlight brightness, saving valuable battery life.

3. Projected Capacitive (PCAP) Multi-Touch Integration

Physical buttons are prone to wear, moisture ingress, and dust accumulation. Integrating multi-touch screens that support glove-friendly and wet-finger operations allows manufacturers to design fully sealed, IP-rated portable instruments that are easier to clean and maintain.

4. Extreme Environmental Tolerance

TFT LCD modules designed for CNC and industrial test applications must operate reliably across wide temperature ranges (typically -20°C to +70°C or higher). They are built with industrial-grade driver ICs and enhanced LED backlights that resist degradation over years of continuous cycling.

Deep Application Scenarios

CNC displays designed for portable electronic test and measurement tools are highly specialized components. Below, we analyze how these displays function across different demanding use cases:

Handheld Oscilloscopes & Signal Analyzers

In handheld oscilloscopes, real-time waveform rendering is critical. The display must have a high refresh rate and low latency to prevent ghosting of fast-moving signal traces. A high-contrast display ensures that multiple color-coded signal lines remain distinct, allowing engineers to diagnose circuit boards quickly and accurately in the field.

RF & Spectrum Analyzers

Spectrum analyzers display complex frequency graphs, waterfall plots, and signal constellations. These visual representations require high resolution to separate closely spaced frequency peaks. Touch interfaces enable intuitive pinch-to-zoom capabilities, allowing technicians to isolate and analyze specific frequency bands effortlessly.

Calibration & Metrology Equipment

Precision calibration tools demand absolute clarity. Round screens and custom small-format LCDs are frequently integrated into handheld pressure calibrators, thermal imagers, and gas detectors, providing high-precision numerical readouts and status icons at a glance, without cluttering the device's compact physical footprint.

Automotive Diagnostic Scanners

Modern vehicle diagnostics require displays that can show live engine telemetry, wiring diagrams, and diagnostic trouble codes (DTCs). Ruggedized CNC displays ensure that drops onto workshop floors or exposure to grease and oil will not compromise the tool’s functionality.

Shenzhen TSONT ELEC. Co., Ltd.

A Leading Global Supplier of Custom Small and Medium TFT LCD Modules

Shenzhen TSONT ELEC. Co., Ltd. was established in Shenzhen, a leading science and technology city in China. We are a premier technology company specializing in the research and development, design, production, and sales of small and medium TFT LCD modules. Our product sizes involve 4.3 inches, 7.0 inches, and 10.1 inches, providing a complete solution provider for the building intercom industry, industrial automation, and high-precision testing equipment.

Since our establishment, the company has developed steadily at home and abroad. Many well-known manufacturers have established long-term and stable cooperation relationships, and we have received strong support from many domestic and foreign LCD glass and IC manufacturers. Our products are widely used in handheld devices, smart devices, smart homes, Internet of things, medical devices, baby monitors, building intercoms, security access control, financial POS, industrial equipment, and other areas of human-computer interaction.

Our Team

The company has a group of professional display module R&D, production management, and technical personnel. We implement a sound ISO9001 quality management system, making full use of local policies, geography, and talent advantages. Our team strives to learn and absorb international advanced technology and experience, upholding high standards, precision technology, and a high-quality business philosophy. We actively explore scientific and efficient management mechanisms to create an innovative technology and management team.
