Capacitive Touch Display For Specialized Scientific Laboratory Instrumentation

Commercial & Industrial Status of Capacitive Touch Displays in Scientific Labs

The global market for specialized scientific laboratory instrumentation is undergoing a rapid digital transformation. Historically, laboratory equipment relied heavily on physical buttons, membrane switches, and segmented monochrome LCD screens. Today, the industrial standard has decisively shifted towards integrated, high-resolution capacitive touch displays. This evolution is driven by the demand for complex data visualization, multi-parameter control, and seamless user interaction in real-time diagnostics.

Modern laboratories—ranging from pharmaceutical R&D facilities and clinical pathology centers to high-energy physics installations—require human-machine interfaces (HMIs) that offer both extreme precision and rugged durability. Projected Capacitive (PCAP) touch technology has emerged as the dominant choice. Unlike resistive screens, capacitive displays offer superior optical clarity, multi-touch capabilities, and a seamless glass surface that is easy to sanitize. Commercially, instrument manufacturers are leveraging these displays to differentiate their products, offering intuitive, smartphone-like user experiences that reduce operator error and training time.

In-Depth Application Scenarios in Specialized Scientific Instrumentation

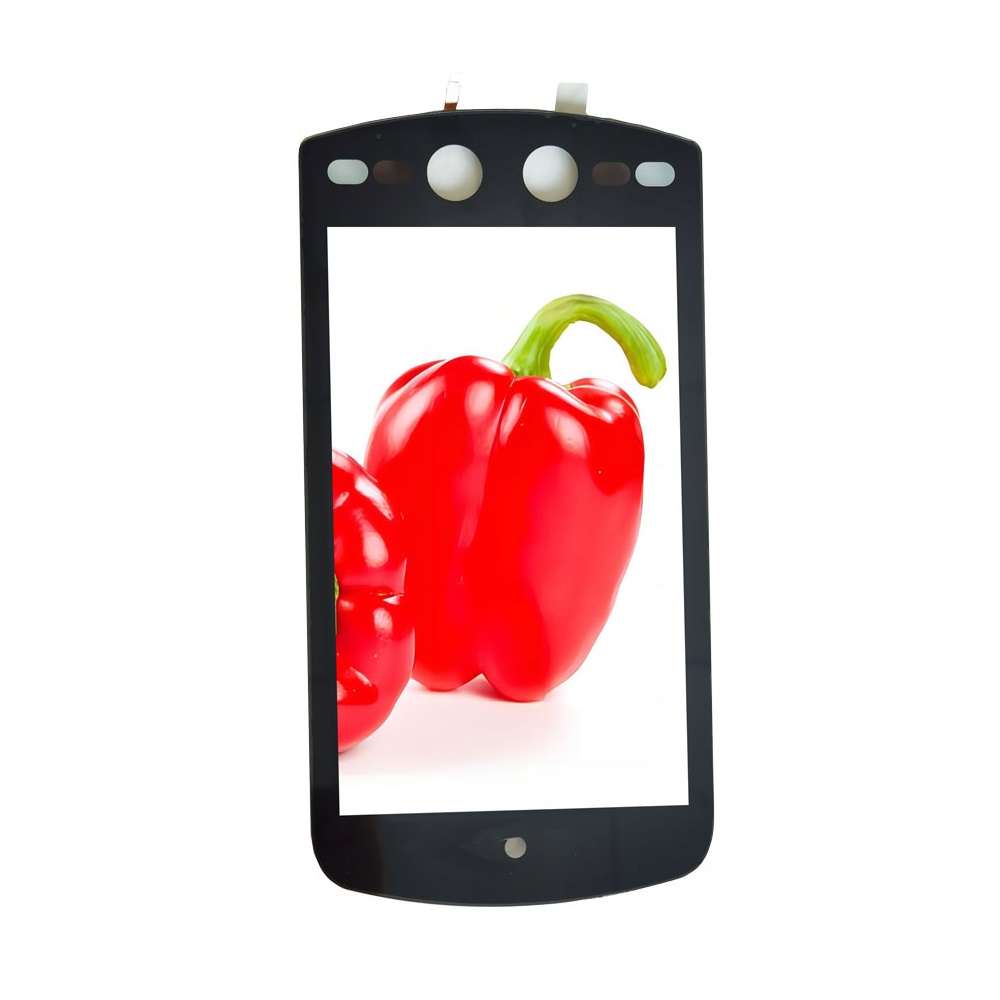

1. Automated Liquid Handling & Pipetting Workstations

In high-throughput screening and genomic research, automated liquid handlers must execute complex pipetting patterns. Integrating high-definition capacitive touch displays allows researchers to map microplate layouts visually directly on the device. Technicians can drag, drop, and pinch-to-zoom to configure sample wells, reducing the reliance on external PC controllers. The smooth glass surface of the capacitive screen ensures that any accidental biohazard spill can be wiped clean and disinfected without compromising the display electronics.

2. Chromatography and Spectroscopy Control Interfaces

High-Performance Liquid Chromatography (HPLC) and gas chromatography systems generate real-time spectral graphs and peak curves. A high-resolution, multi-touch MIPI interface display enables real-time pinching and scaling of data graphs directly on the instrument panel. Scientists can isolate specific peaks, inspect baseline noise, and initiate calibration routines instantly. The high optical clarity of IPS-based capacitive displays ensures that color-coded multi-channel graphs remain legible from wide viewing angles across the lab bench.

3. Biosafety Cabinets, Incubators, and Cryogenic Storage

Environmental control chamber interfaces must operate continuously in high-humidity or sub-zero environments. Capacitive touch controllers configured with water-rejection algorithms prevent accidental inputs caused by condensation or cleaning sprays. Additionally, these displays act as the master dashboard for tracking CO2 levels, temperature logs, and door-open warnings. The flat glass design eliminates crevices where bacteria or mold could accumulate, fulfilling strict sterile cleanroom standards.

Technological Trends and Future Advancements

The future of laboratory HMI display technology lies in the integration of smart touch controllers and adaptive display properties. We are witnessing a transition toward optical bonding, a process that laminates the touch panel directly to the LCD cell. This eliminates the air gap, drastically reducing internal reflections, enhancing structural rigidity, and preventing moisture ingress in humid lab environments.

Furthermore, the integration of haptic feedback within capacitive touch interfaces is gaining traction. When a scientist adjusts a critical parameter, such as centrifuge RPM or incubation temperatures, physical vibration cues provide tactile confirmation without requiring the operator to look away from the sample. In terms of styling, custom-shaped cover lenses and anti-microbial coatings are becoming standard requirements for specialized instrumentation manufacturers globally.
