TFT Color LCD Screen for Intelligent EV Charging Pile Interfaces

The Crucial Role of TFT Color LCD Screens in Intelligent EV Charging Pile Interfaces

The global transition toward sustainable energy has accelerated the installation of electric vehicle (EV) charging stations. As these systems evolve from basic electrical outlets into complex, grid-connected smart terminals, the demand for sophisticated Human-Machine Interfaces (HMIs) has skyrocketed. The modern TFT Color LCD Screen for Intelligent Electric Vehicle Charging Pile Interfaces is no longer just a luxury; it is a critical operational component that bridges the gap between drivers, grid operators, and digital payment networks.

Charging piles are deployed in highly diverse and challenging environments—ranging from sub-zero underground parking garages to scorching, direct-sunlight highway service stations. Consequently, the display modules integrated into these systems must exhibit exceptional optical performance, thermal resilience, and interactive reliability. High-resolution TFT LCD panels equipped with industrial-grade capacitive touch technology enable seamless transaction processing, real-time battery status visualization, diagnostic reporting, and interactive advertising.

Commercial and Industrial Status of EV Charging Pile Displays

The commercial landscape for EV charging stations is characterized by rapid technological upgrades. Early-generation charging piles utilized simple monochrome segmented LCDs or character displays. However, with the integration of dynamic QR code payments, multi-language support, real-time grid data tracking, and promotional video playback, the industry has universally shifted toward TFT color LCD screens.

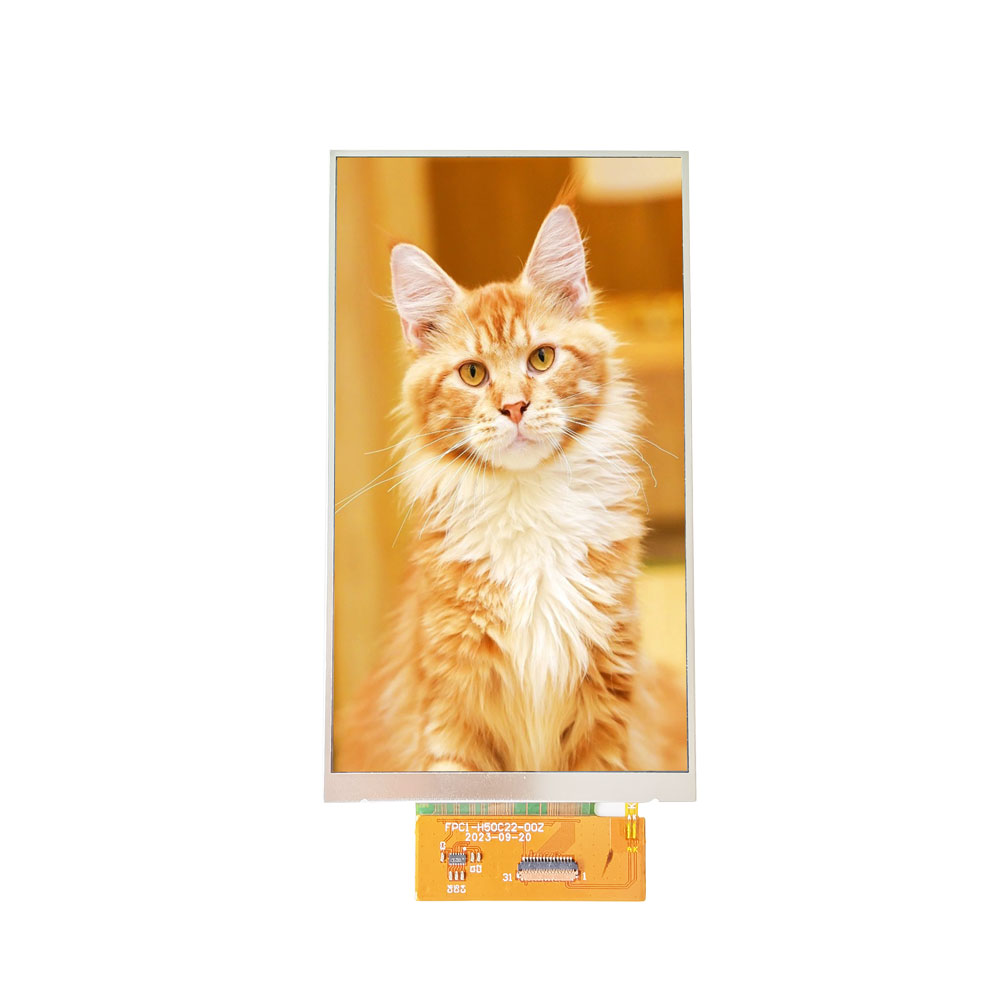

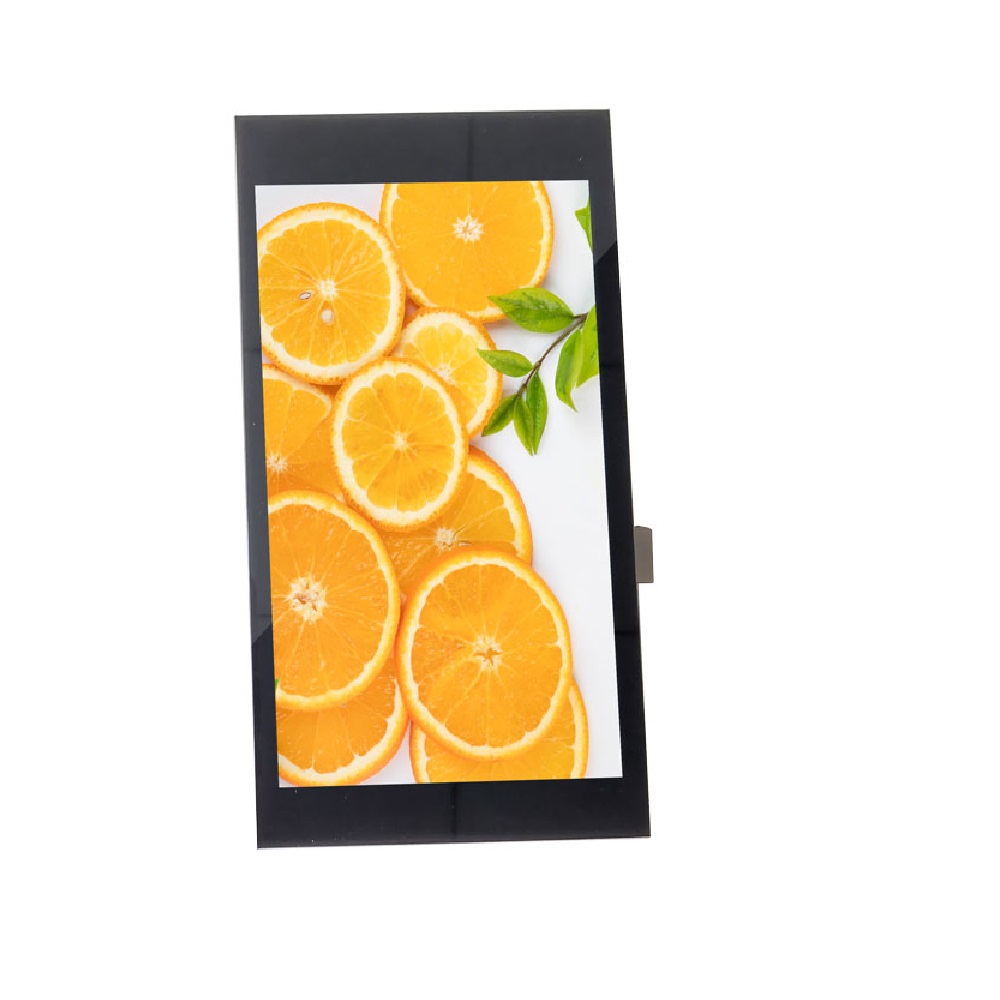

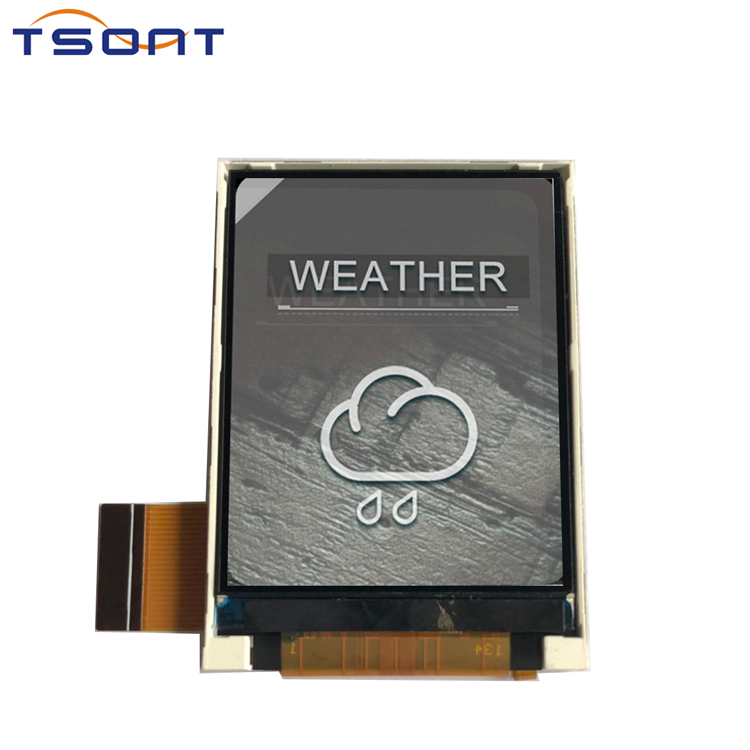

In public and commercial spaces, high-power DC fast chargers (HPDCs) typically utilize displays ranging from 7.0 inches to 15.6 inches. These larger screens enable operators to generate auxiliary advertising revenue while vehicles are charging. In contrast, residential AC wallboxes or fleet depot chargers favor smaller, highly efficient display modules (from 2.0 inches to 5.0 inches) that focus primarily on functional parameters like charging speed, time elapsed, and energy consumption.

Deep Application Scenario Analysis

1. Ultra-Fast Highway DC Charging Terminals

On highways, charging speed is paramount. Drivers expect a seamless, rapid interaction flow. In this scenario, large 10.1-inch or 12.1-inch TFT LCD screens with high resolution (such as 1280x800) are the standard. The screen displays highly detailed graphical information, including real-time charging curves, state-of-charge (SoC) percentages, estimated remaining time, and cooling system metrics. Because these stations are exposed to all weather conditions, the screens must feature high-brightness backlights (1000 to 1500 nits) and optical bonding to prevent internal condensation and eliminate glare.

2. Urban Commercial and Retail Charging Piles

Located in shopping malls, hotels, and public parking lots, these charging piles double as digital signage systems. A dual-screen configuration is frequently deployed: one smaller interactive touch screen for user authentication and transaction handling, and a larger secondary display for localized advertisements and public service announcements. The interactive screen must support multiple payment models, including credit cards, mobile wallets, and RFID cards, displaying dynamic QR codes that update instantly.

3. Fleet Depot and Logistics Charging Systems

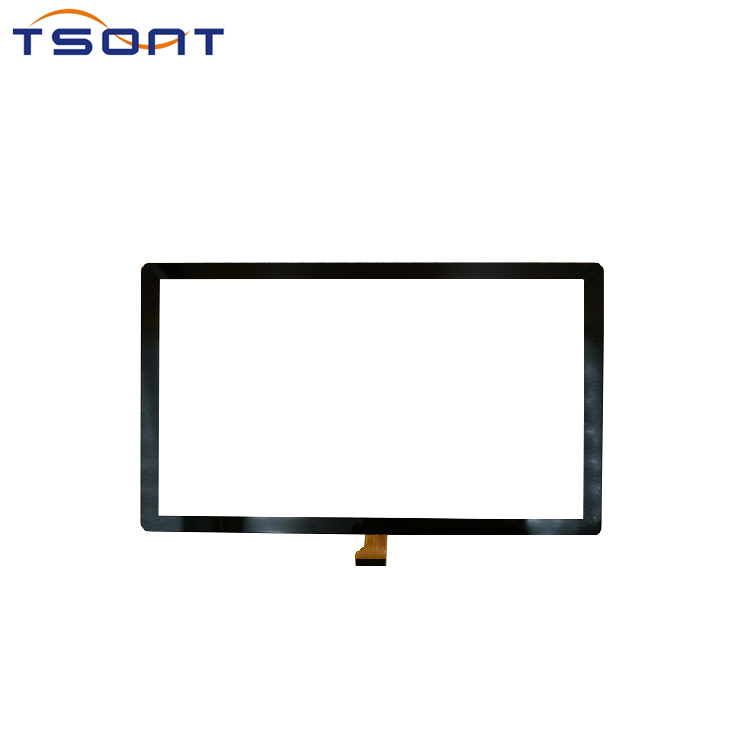

For commercial truck and bus fleets, the charging interface focuses on utility, robustness, and fleet management integration. Display modules in these environments require robust touch capabilities that respond accurately even when operators wear heavy industrial gloves. The screens display fleet identification numbers, vehicle diagnostic codes, and scheduling parameters, ensuring fleet managers can monitor depot throughput at a glance.

Future Technological Trends in EV Charger HMIs

As the EV charging ecosystem moves toward automated grid balancing and bidirectional charging (Vehicle-to-Grid or V2G), the display interface must adapt. Users will soon interact with screens to configure energy feedback settings, deciding how much power to sell back to the grid. To support this, next-generation display interfaces will integrate:

• Smart Sensor Integration: Proximity sensors that wake the display from low-power sleep modes as users approach, reducing energy consumption and extending backlight life.
• Voice-Assisted Interfaces: Combining high-definition TFT displays with voice recognition microphones to assist visually impaired drivers, meeting international accessibility standards.
• Dynamic UI Customization: Advanced UI rendering engines that dynamically adjust contrast and color schemes based on ambient light sensors, ensuring comfortable viewing during twilight, night, and peak sun hours.
